Our Machineries

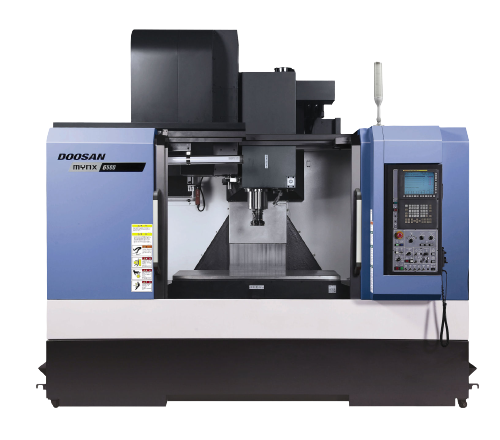

Description Specification

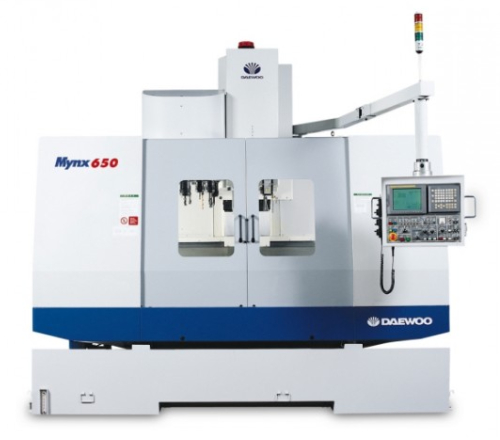

Table Size 1400 * 650
No. of Axis 3
Axis "X" 1300
Axis "Y" 650
Axis "Z" 625
Rotary Table U cam (URK - 250)
No. Of Tool Pockets 30
Max Spindle Speed 8000 mm/min
Max. Work Piece Weight 1000 kg
Spindle Tapper ISO 40
System FANUC

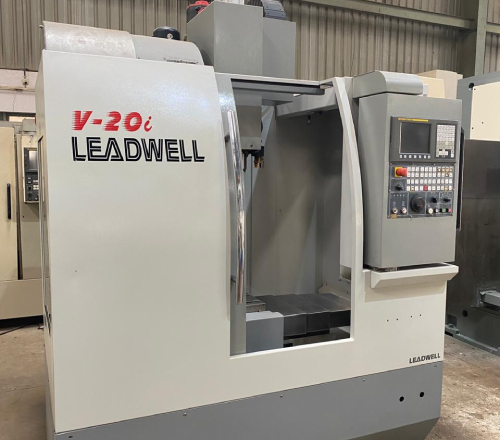

Description Specification
Table Size 600* 350
No. of Axis 3
Axis "X" 510
Axis "Y" 350
Axis "Z" 400
No. Of Tool Pockets 20
Max Spindle Speed 8000 mm/min
Max. Work Piece Weight 200 kg
Spindle Tapper CAT 40
System FANUC

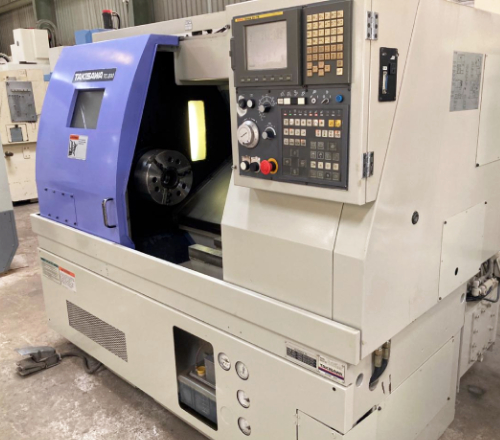

Description Specification
Chuck 10" kitagawa Chuck
Max. Turning Diameter 305.0mm
Max. Turning Length 410.0mm
No. Of Tool Station 12 No's
Max Spindle Speed 5000 mm/min
Spindle Tapper ISO40
System FANUC

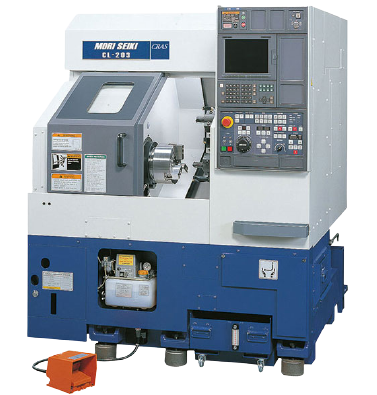

Description Specification
Chuck 10" kitagawa Chuck
Max. Turning Diameter 363.0mm
Max. Turning Length 430.0mm
Axis "X" 245.0mm
Axis "Z" 370.0mm
No. Of Tool Station 12 No's
Max Spindle Speed 5000 mm/min
Description Specification

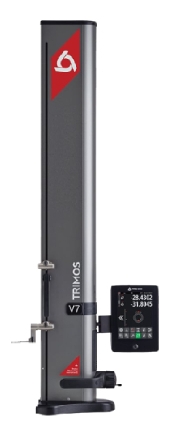

Measuring Range 711 mm
Measuring Range with Extension 1023 mm
Max. Permissible errors, BMPE 2+L(mm)/400 µm
Repeatability, RMPE (2s) 1(Ø:2) µm
Frontal Squareness Deviation, SMPE 8 µm
Maximal Resolution 0.0001 mm
Measuring Force 0.75 ÷ 1.5 N
Autonomy 12 h
Interfaces USB / RS232
Air Cushion Yes
Weight 25 Kg

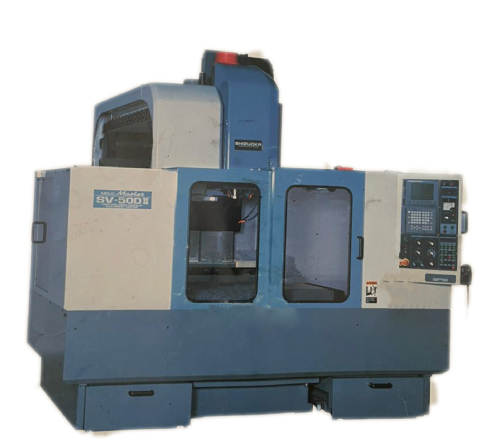

Description Specification
Table Size 1300* 500
No. of Axis 3
Axis "X" 1050
Axis "Y" 520
Axis "Z" 520
No. Of Tool Pockets 30
Max Spindle Speed 5000 rpm
Max. Work Piece Weight 1000 kg
Spindle Tapper BT 50
System FANUC

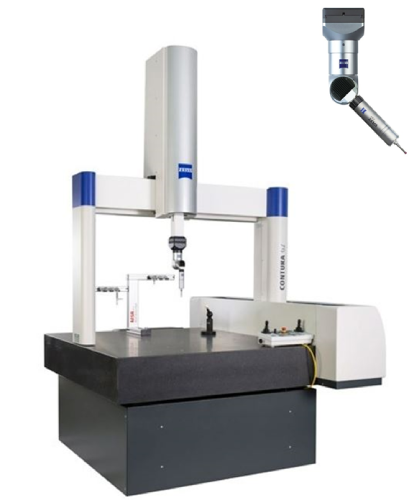

Description Specification
MAKE ZEISS CMM CONTURA G2
Measuring Range X-700 mm, Y-1000 mm, Z-600mm
ACCURACY MPEE =(1.8+L/300)mm, PFTU =1.8MM RDS VAST XXT ROTATING HEAD C-CCA indexing probe holder each articulating axis features ±180° setting Range with 2.5 degree
PROBES ZEISS / RENISHAW SENSORS TP6 ZEISS SCANNING SENSOR VAST XXT TL3 ZEISS MULTI POINT SENSOR XDT TL3
No. of Tools 90
Rapid Feed Rate For All Axis 24000 mm/min
Description Specification

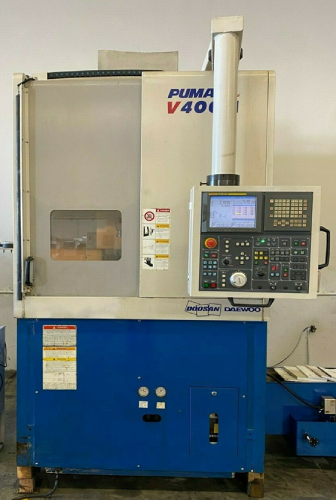

MAKE DOOSAN DAEWOO
SPECIFICATION PUMA V400 VTL RH
CHUCK 12" Samchully Chuck
MAX.TURNING DIAMETER 496.00mm
MAX.TURNING LENGTH 461.00mm
SWING DIAMETER 610mm
TURRET STATION 12
MAX SPINDLE SPEED 2500 mm/min
SYSTEM OS FANUC-Oi
Description Specification
MAKE DOOSAN DAEWOO
SPECIFICATION PUMA V400 VTL LH
CHUCK 12" Samchully Chuck
MAX.TURNING DIAMETER 496.00mm
MAX.TURNING LENGTH 461.00mm
SWING DIAMETER 610mm
TURRET STATION 12
MAX SPINDLE SPEED 2500 mm/min
SYSTEM OS FANUC-Oi

Mitutoyo Roughness Tester:

Measuring Instruments

Upcoming Machines

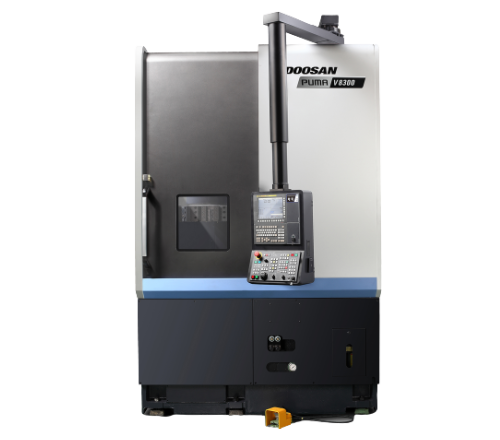

Description Specification
Max. Turning Diameter 830 mm
Max. work Piece Swing 850 mm
Max. Turning Height 750 mm
Chuck Size 24 Inch
Max. Rotating Speed 2000 r/min
Max. Power 45/37 kW
Max. Torque 2592 N-m
No.of Tool Positions 12 st
Indexing Time 0.25 Sec
Description Specification
Max. Turning Diameter 830 mm
Max. work Piece Swing 850 mm
Max. Turning Height 750 mm
Chuck Size 24 Inch
Max. Rotating Speed 2000 r/min
Max. Power 45/37 kW
Max. Torque 2592 N-m
No.of Tool Positions 12 st
Indexing Time 0.25 Sec

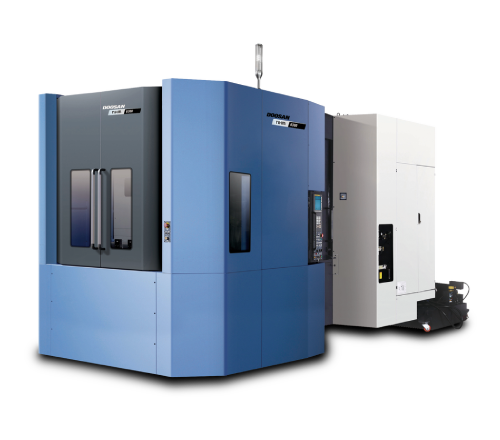

Description Specification
Max. Work Piece Weight 2000 Kg
Max. Swing 1450 * 1550
Pallet Indexing Angle 1 Degree
No. of Tools 90
Rapid Free Rate For All Axis 24000 mm/min
No. of Axis X1 - 1400 mm,Y1 - 1050 mm, Z1 - 1200 mm
